Clamp on Ultrasonic BTU meters

General Information

Ultrasonic flow and energy meters clamp onto the outside of pipes and do not contact the internal liquid. The technology has inherent advantages over alternate devices including:low-cost installation, no pressure head loss, no moving parts to maintain or replace, no fluid compatibility issue, and a large, bi-directional measuring range that ensures reliable readings even at very low and high flow rates.

It is available in a variety of configurations that permit the user to select a meter with features suitable to meet particular application requirements.

There are two versions: a stand-alone flow meter, and an energy flow meter used in conjunction with dual clamp-on RTDs. The energy flow meter measures energy usage in BTU, MBTU, MMBTU, Tons, kJ, kW, MW and is ideal for retrofit, chilled water and other HVAC applications.

Technical Data

Liquid types	Most clean liquids or liquids with small amounts of suspended solids
Pipe sizes	DN 15 up to DN 3000
Accuracy	±1 % of reading resp ±0.003 m/s
Power supply	AC: 95 – 264 VAC 47 – 63 Hz @ 17 VA max. resp. 20 – 28 VAC 47 – 63 Hz @ 0,35 A max.
	DC: 10 – 28 VDC @ 5 W max.
Ambient conditions	-40 °C up to +85 °C
Velocity range	Bi directional 0,03 up to 12 m/s
Display	Two line LCD, LED backlit

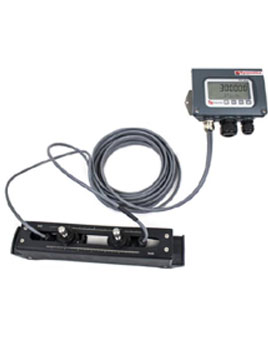

Sensors TFX Ultra® Easy Rail system	small / big
Pipe size	DN 50 - DN 150 / DN 50 - 300
Enclosure	POM
Pipe surface temperature	up to +120 °C
Sensor frequency	1 MHz
Sensors TFX Ultra®
Pipe size	DN 15 – DN 3000
Enclosure	DTTR = Ultem®
	DTTC/DTTL / DTTN (IS) / DTTN/DTTL = CVPC, Ultem®
	DTTH = PTFE
	DTTS = PVC, Ultem®
Pipe surface temperature	DTTR = -40 °C up to +121 °C
	DTTC / DTTL = -40 °C up to +90 °C
	DTTN = -40 °C up to +90 °C
	DTTH = -40 °C up to +176 °C
	DTTS = PVC: -40 °C up to +60 °C
	DTTC = CPVC: -40 °C up to +85 °C
Sensor frequency	DTTS / DTTC = 2 MHz
	DTTR / DTTN / DTTH = 1 MHz
	DTTL = 500 KHz

Industries

Water & waste water industry, Chemical industry, Pharmaceutical industry, Food & beverage industry, General industry, Oil industry, Aerospace industry, automotive industry
