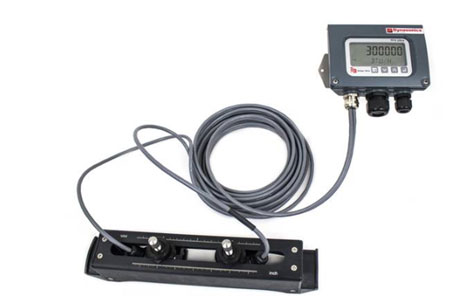

Clamp on Ultrasonic flow meters

General Information

Ultrasonic clamp-on flow meter is quickly and easily installed without cutting or tapping the pipe.  Ultrasonic waves transmit upstream and downstream through the pipe wall and water flowing in the pipes. By measuring the difference in the travel time and knowing the pipe size, the meter determines the velocity and flow rate. These flow meters are a cost effective meter for measuring water flow in a variety of applications.



BENEFITS

Retrofit existing pipes without shutting down the system

Reduce installation time and material costs

No moving parts to maintain

No pressure head loss

FEATURES

Non-invasive clamp-on ultrasonic transit time flow meter

Bidirectional, full pipe flow measurement

Measures flow rate, total and velocity of water flow

Large easy to read display

Set up through keypad interface and SoloCUE software

Connects to BEACON® AMA and AquaCUE flow analytics

Modbus RTU and BACnet MS/TP communications



SPECIFICATIONS

Size 1/2...10 in.

Temperature Range -40...250 °F

Flow Range 0.1...9800 gpm



Application Examples

Water system

Wastewater effluent

Agriculture irrigation

Industrial discharge



Industries

Building Automation / HVAC

Facility or Property Management

Irrigation

Water & Wastewater Treatment

Water Distribution
